US 12
products / UNIVERSAL RADIAL ARM SAWS
play video
Product Description
RADIAL CARPENTRY SAWS

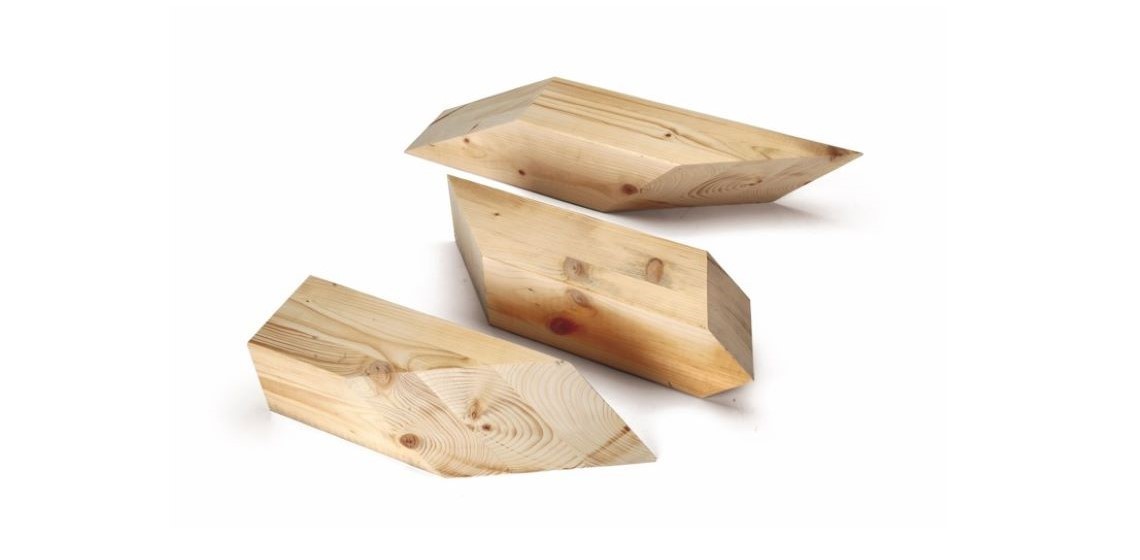

COMPOUND CUTTING FOR LARGE SECTIONS
COMPOUND CUTTING FOR LARGE SECTIONS
US12 was built to meet the needs of cutting large sections in combination with blade tilting and arm rotation.
All machine movements, tilting, rotation and blade feed are manually controlled by the operator.
The machine's fixed zero point ensures that both rotation and tilting are always dimensionally stable
with respect to the length indicated on the measuring system.
With a blade diameter of 550 mm and a motor power of 4 kW, it can cut up to 200 mm thickness and 530 mm width.
Possibility of integrating the STROMAB STOP automatic measuring positioner to create a semi-automatic cutting line
All machine movements, tilting, rotation and blade feed are manually controlled by the operator.
The machine's fixed zero point ensures that both rotation and tilting are always dimensionally stable
with respect to the length indicated on the measuring system.
With a blade diameter of 550 mm and a motor power of 4 kW, it can cut up to 200 mm thickness and 530 mm width.
Possibility of integrating the STROMAB STOP automatic measuring positioner to create a semi-automatic cutting line
|
Technical data
|
|
|
Blade diameter
550 mm
|
Blade rotation speed
3000 rpm
|
|
Blade motor power
4 kW (5,5 HP)
|

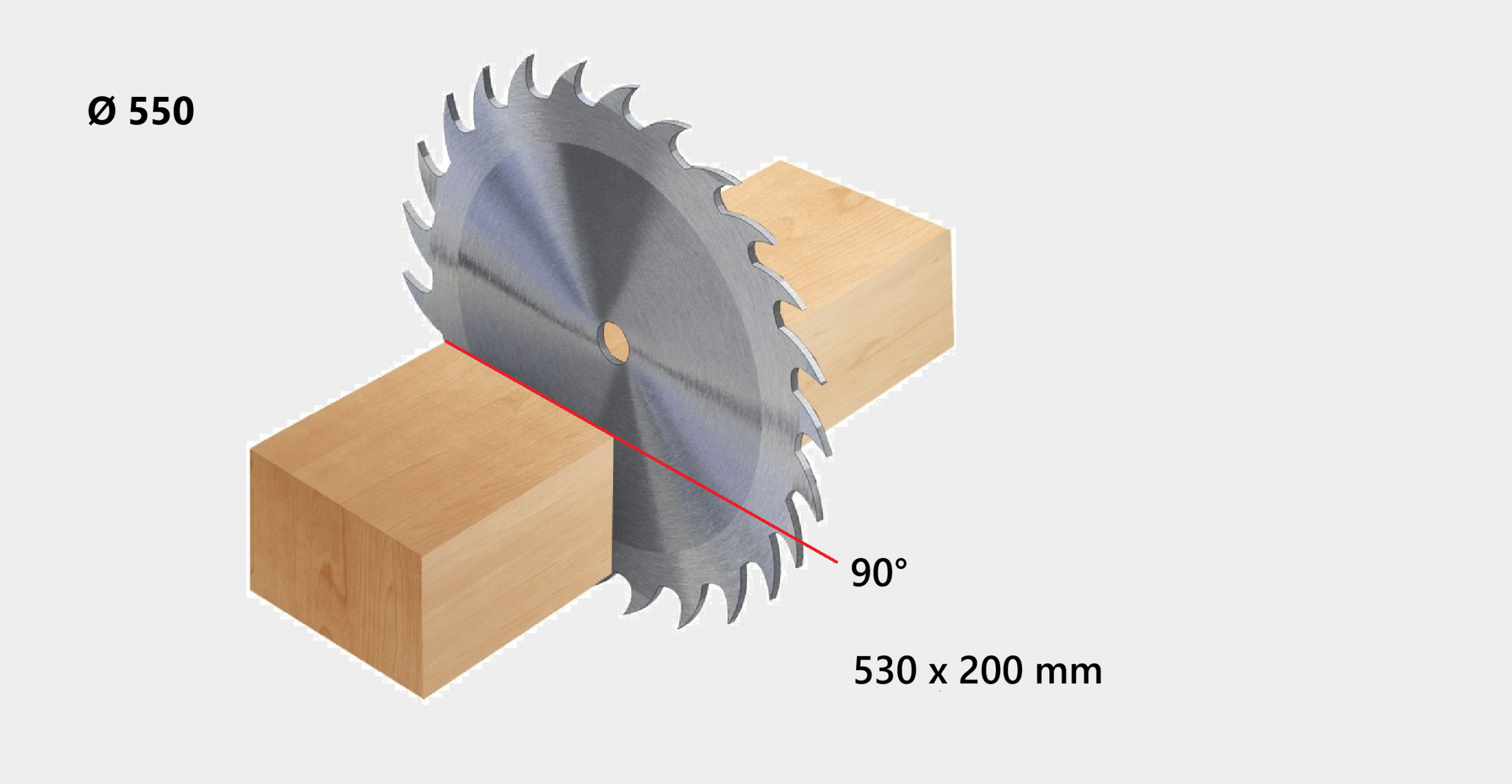

Max cutting capacity at 90°
530 mm (W) x 200 mm (H)
|
|
Blade rotation (arm rotation)
-45° +60°
|
Blade inclination
0° +45°
|
|
Operating pressure
6-8 bar
|
Extraction outlets
1 x Ø150 mm + 1 x Ø40 mm
|
|
Net weight
345 kg
|
|
