RS 900 S
products / RADIAL ARM SAWS
Product Description
RADIAL ARM SAWS
THE ORIGINS
RS900S with its cast iron frame offers versatility, cutting precision and functionality
for all different types of joinery material.

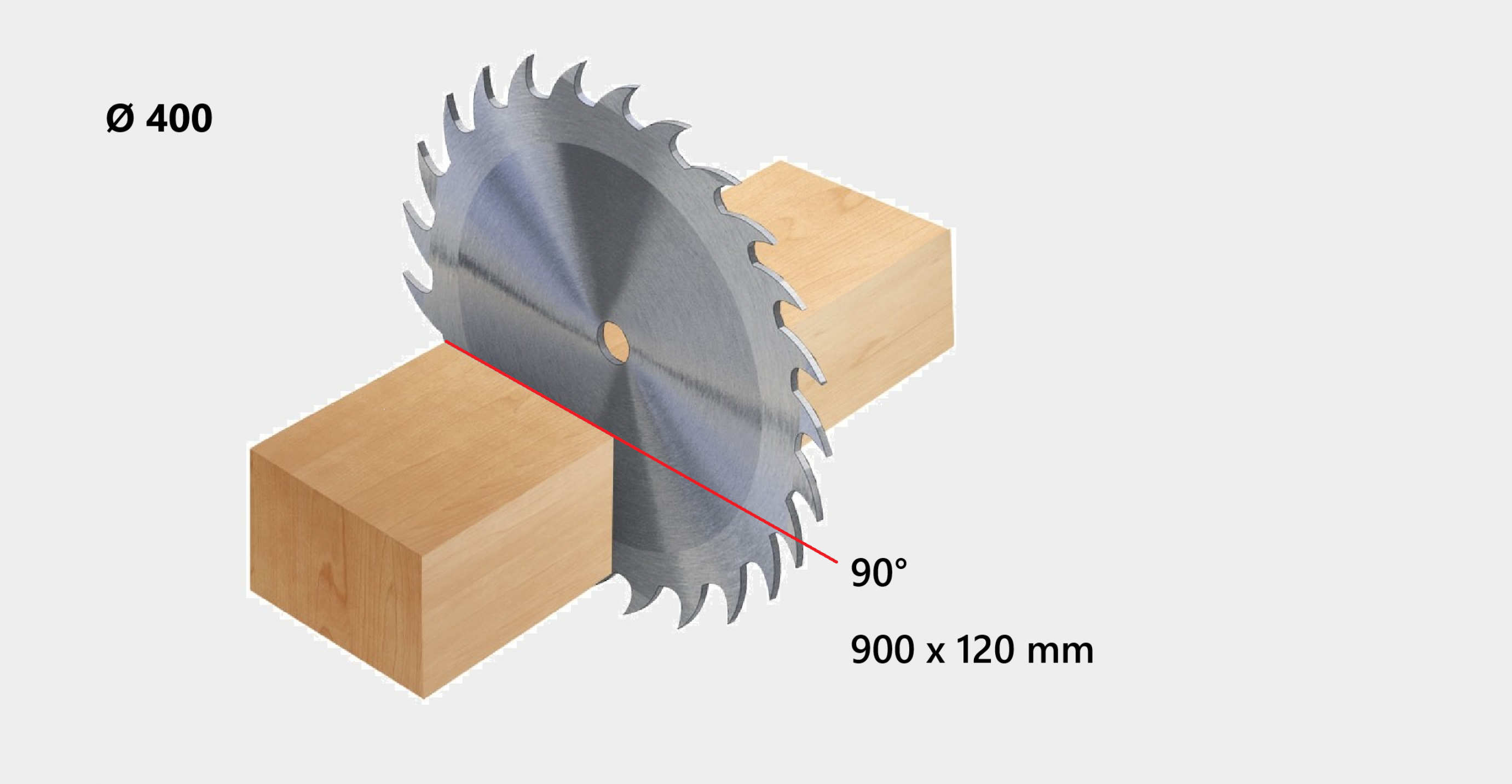

Thanks to a blade diameter 400 mm and a motor power of 4 kW allows you to cut
up to 120 mm thick and 900 mm wide.
for all different types of joinery material.
Thanks to a blade diameter 400 mm and a motor power of 4 kW allows you to cut
up to 120 mm thick and 900 mm wide.
|
Technical data
|
|
|
Blade diameter
400 mm
|
Blade rotation speed
3000 rpm
|
|
Blade motor power
kW 4 (HP 5,5) triphase
|
Max cutting capacity
900 mm (W) and 120 mm (H)
|
|
Blade rotation (arm rotation)
-45° +45°
|
Blade inclination
0° -45°
|
|
Operating pressure
6 bar
|
Extraction outlets
1 x Ø60 mm + 1 x Ø120 mm
|
|
Net weight
300 kg
|
