TR601 MX - TR601F MX
products / OPTIMIZING CROSSCUT LINES FOR STRAIGHT CUTTING
Product Description
CROSSCUTTING LINE WITH AUTOMATIC LOADING
OPTIMISED STACK CUTTING
The TR601 MX is an electronically pusher-operated cut-off line with complete optimisation and defection of wood.
With its specific hydraulically driven cutting unit and a powerful 9.2 kW motor, it is the ideal solution
to cut in packs by exploiting the large cutting sections of the 600 mm diameter blade, precisely and quickly.
Thanks to increasingly ambitious technical choices, the electronic pusher runs on a linear guide and high-performance skids.
The feed system by means of rack and pinion and brushless motor guarantees the pushing of a pack of up to 750 kg.
The software architecture relies on a Beckhoff electronic control with a 12’ high-resolution touch-screen monitor,
simple and intuitive 3D graphic interface with Windows operating system.
Cutting lists can be created directly on the on-board software or imported via connection
to Ethernet or USB network ports.
The software allows the cutting list to be automatically optimised to reduce waste and optimise the machining process
according to 4 criteria: maximum length, minimum waste, sequence and priority.
A photocell allows automatic measurement of the workpiece to be cut (OPTI function).
A second photocell detects fluorescent marks for the elimination of knots and defects (OPTI PLUS function).
With its specific hydraulically driven cutting unit and a powerful 9.2 kW motor, it is the ideal solution
to cut in packs by exploiting the large cutting sections of the 600 mm diameter blade, precisely and quickly.
Thanks to increasingly ambitious technical choices, the electronic pusher runs on a linear guide and high-performance skids.
The feed system by means of rack and pinion and brushless motor guarantees the pushing of a pack of up to 750 kg.
The software architecture relies on a Beckhoff electronic control with a 12’ high-resolution touch-screen monitor,
simple and intuitive 3D graphic interface with Windows operating system.
Cutting lists can be created directly on the on-board software or imported via connection
to Ethernet or USB network ports.
The software allows the cutting list to be automatically optimised to reduce waste and optimise the machining process
according to 4 criteria: maximum length, minimum waste, sequence and priority.
A photocell allows automatic measurement of the workpiece to be cut (OPTI function).
A second photocell detects fluorescent marks for the elimination of knots and defects (OPTI PLUS function).

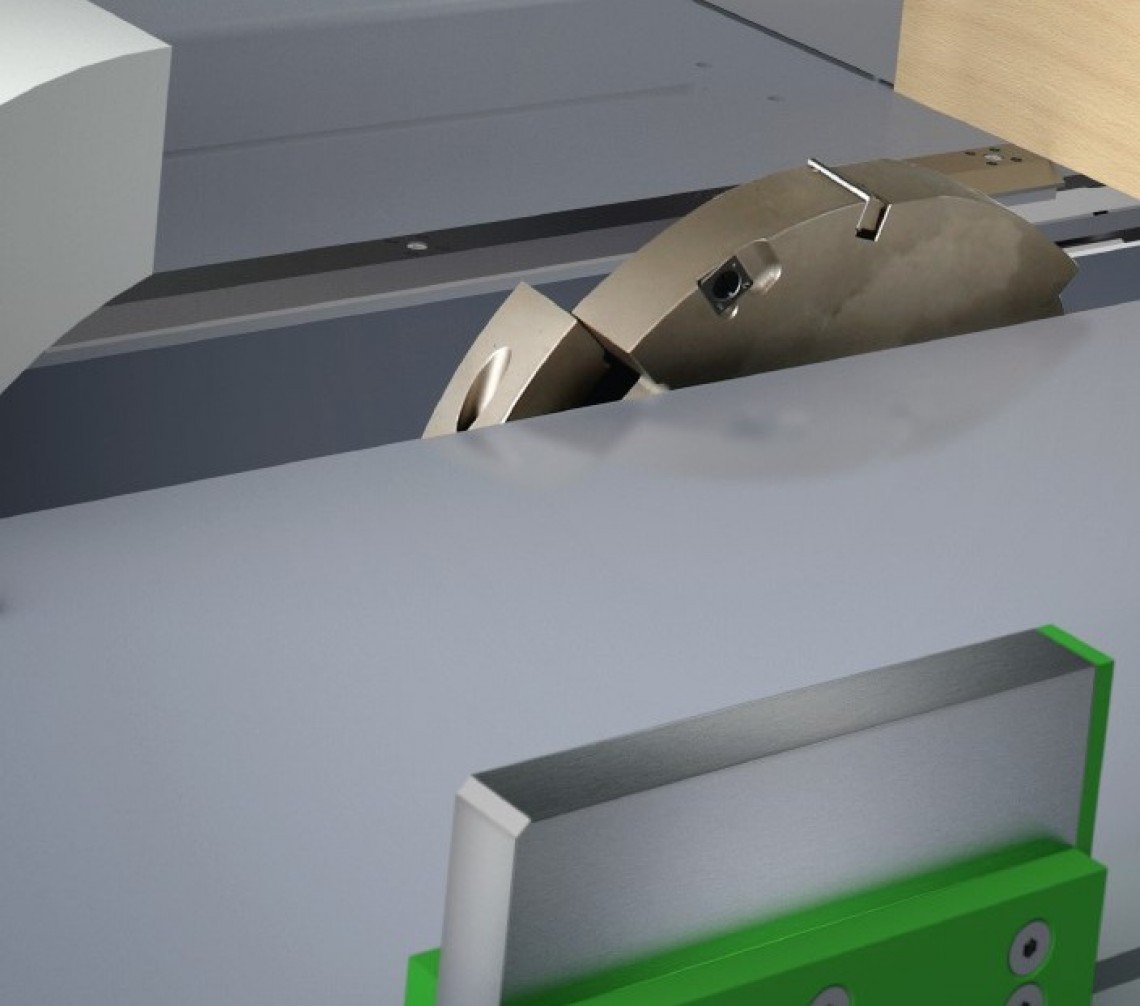

The TR601F MX integrates the notching unit on the machine, transforming it into a true machining centre
combining cutting and milling.
combining cutting and milling.
Label and inkjet printers can be integrated into the cutting line.
On request, it is possible to implement an automatic single-bar unloading system designed for unloading bundled material.
The unloader is also available with a trapdoor for the evacuation of end trim and tail trim.
On request, it is possible to implement an automatic single-bar unloading system designed for unloading bundled material.
The unloader is also available with a trapdoor for the evacuation of end trim and tail trim.
|
Cut-off saw technical data
|
|
|
Blade diameter
600 mm
|
Blade rotation speed
2600 rpm
|
|
Blade motor power
kW 9,2 (HP 12,5)
|
Minimum cutting cross-section
20 (W) x 10 (H) mm
|
|
Max cutting capacity
650 mm (W) a 40 mm (H) - 300 mm (W) a 200 mm (H)
|
Max operating pressure
6 bar
|
|
Extraction outlets
2 x Ø100 mm
|
Net weight
2100 kg
|
|
Notching unit technical data
|
|
|
Motor power
kW 4 (HP 5,5) - kW 5,5 / kW 7,5 opzionale
|
Max cutter diameter
280 mm (foro Ø40 mm)
|
|
Milling stroke
400 mm
|
Max cutter width
100 mm
|
|
Manual milling depth adjustment
from 0 upto 75 mm (controlled positioning option)
|
Net weight
750 kg
|
|
Push-feed technical data
|
|
|
Loading capacity
from 4000 upto 14000 mm
|
Max speed
90 mt / min
|
|
Max positioning speed
90 mt / min
|
Max return speed
90 mt / min
|
|
Positioninf accuracy
+/- 0,4 mm
|
Max boards weight
350 kg upto 7000 mm - 750 kg upto 8000 mm
|
|
Cutting execution cycle
6 sec
|
|
