TR 450 Matrix
products / OPTIMIZING CROSSCUT LINES FOR STRAIGHT CUTTING
Product Description
CROSSCUTTING LINE WITH ELECTRONIC PUSH-FEED
MATRIX, A STROMAB PHILOSOPHY
TR450 Matrix is a crosscutting line with electronic push-feed with complete optimisation and defection of wood.
An optimal solution for all 90° up-cutting requirements, it can work with either single bars or packs.
The push-feed is built with a rack and pinion feed system and brushless motor to ensure
uncompromised positioning and maximum cutting accuracy.
The software architecture relies on an electronic programmer with a high-resolution 12’ touch-screen monitor,
simple and intuitive graphic interface with Linux operating system.
The cutting lists can be created directly on the software on board the machine or imported via connection
to Ethernet or USB network ports.
The software allows automatic optimisation of the cutting list to reduce waste and optimise the machining process
according to 6 criteria: maximum length, minimum waste, sequence, table sequence, volume and priority.
A photocell allows automatic measurement of the workpiece to be cut (OPTI function).
A second photocell detects fluorescent marks for the elimination of knots and defects (OPTI PLUS function).
Possibility of integrating label and ink-jet printers to the cutting line.
Automatic loading and unloading systems can be implemented on request.
Clear choices for complex solutions.
An optimal solution for all 90° up-cutting requirements, it can work with either single bars or packs.
The push-feed is built with a rack and pinion feed system and brushless motor to ensure
uncompromised positioning and maximum cutting accuracy.
The software architecture relies on an electronic programmer with a high-resolution 12’ touch-screen monitor,
simple and intuitive graphic interface with Linux operating system.
The cutting lists can be created directly on the software on board the machine or imported via connection
to Ethernet or USB network ports.
The software allows automatic optimisation of the cutting list to reduce waste and optimise the machining process
according to 6 criteria: maximum length, minimum waste, sequence, table sequence, volume and priority.
A photocell allows automatic measurement of the workpiece to be cut (OPTI function).
A second photocell detects fluorescent marks for the elimination of knots and defects (OPTI PLUS function).
Possibility of integrating label and ink-jet printers to the cutting line.
Automatic loading and unloading systems can be implemented on request.
Clear choices for complex solutions.
|
Cut-off saw technical data
|
|
|
Blade diameter
450 mm
|
Blade rotation speed
2900 rpm
|
|
Blade motor power
kW 4 (HP 5,5)
|
Working table height
850 mm
|
|
Working table inclination
8°
|
Minimum cutting cross-section
20 (W) x 10 (H) mm
|
|

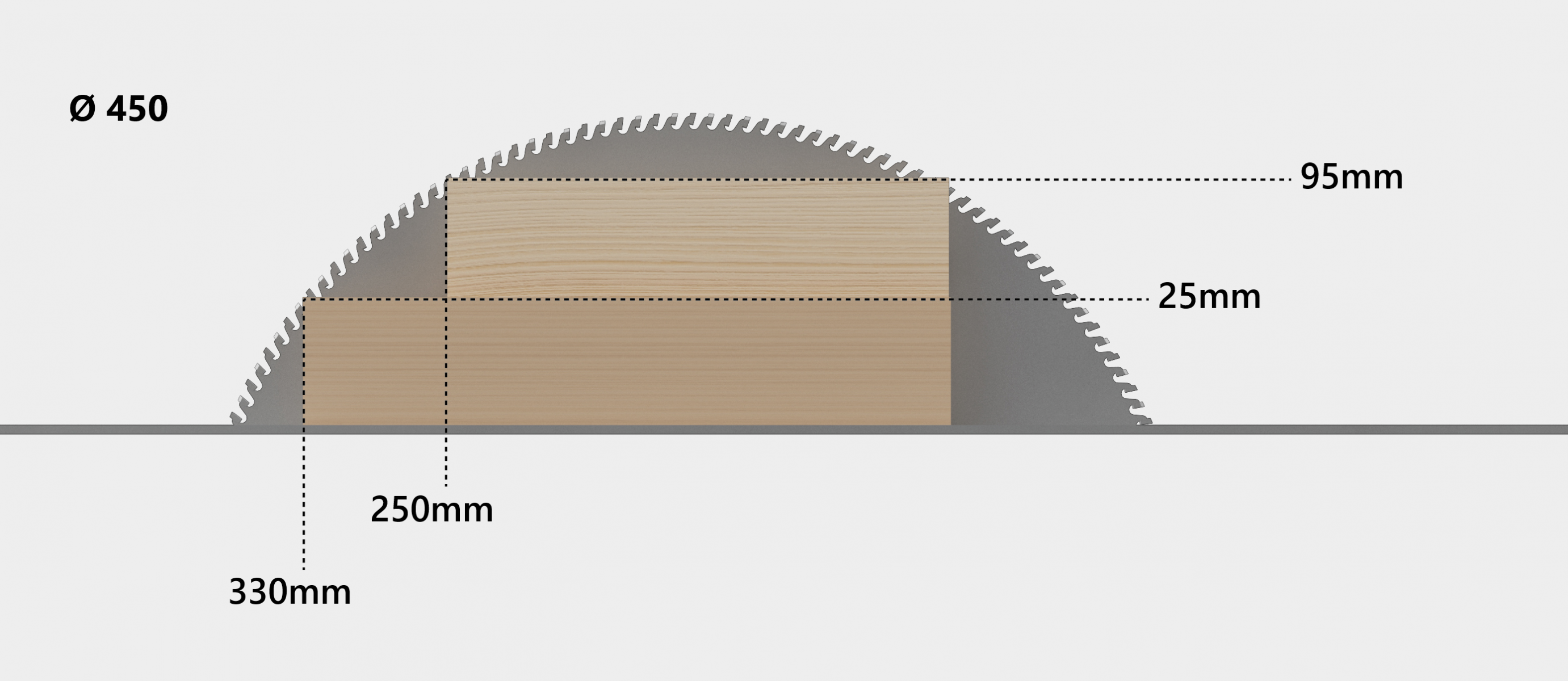

Max cutting capacity
330 mm (W) a 25 mm (H) - 250 mm (W) a 100 mm (H)
|
Max operating pressure
6-8 bar
|
|
Extraction outlets
2 x Ø100 mm
|
Net weight
1300 kg
|
|
Push-feed technical data
|
|
|
Loading capacity
from 2000 upto 6000 mm
|
Max speed
90 mt / min
|
|
Max positioning speed
90 mt / min
|
Max return speed
90 mt / min
|
|
Positioning accuracy
+/- 0,4 mm
|
Max boards weight
80 kg
|
|
Cutting execution cycle
4 sec
|
|
ELECTRONIC PUSH-FEED SYSTEM
Rack ad Pinion and Brushless motor
AUTOMATIC LOADING AND UNLOADING SYSTEMS
Automatic loader with chain loading system.
Automatic sorting unit with belt, pneumatic kickers and stacking idle rollers table.
