CT 600 F

products / OPTIMIZING CROSSCUT LINES FOR ANGLED CUTTING play video

Product Description

CROSSCUTTING LINE WITH ELECTRONIC PUSH-FEED FOR ANGLED CUT
OPTIMISED CUTTING AND NOTCHING

CT600F is a crosscutting line with electronic push-feed with complete optimisation and defection of wood.
Thanks to its rotary table, it is the optimal solution for all straight (90°) and angular (+/- 70°) cutting for both
single board and stack sawing.
The push-feed is designed with a rack and pinion feed system and brushless motor to guarantee maximum cutting precision.
The notching unit combined with the CT600 turn what started as a cut-off machine into a true working centre that match
cutting and milling process.
The combination of the upper vertical presser and the two frontal pullers allow a perfect hold during the notching operation.
The software architecture relies on a Beckhoff electronic control with a high-resolution 12" touch-screen monitor,
simple and intuitive 3D graphic interface with Windows operating system.
Cutting lists can be created directly on the on-board software or imported via connection to Ethernet or USB network ports.
The software allows the cutting list to be automatically optimised to reduce waste and optimise the machining process
according to 4 criteria: maximum length, minimum waste, sequence and priority.
A photocell allows automatic measurement of the workpiece to be cut (OPTI function).
A second photocell detects fluorescent marks to eliminate knots and defects (OPTI PLUS function).
Possibility of integrating label and ink-jet printers into the cutting line.
Automatic loading and sorting units can be implemented on request.
All in all, it is the perfect machine for the most demanding customers, flexible but with high production capacity.
It is the reference for manufacturers of special packaging, wooden floors, wooden houses (Truss and Frame Walls)
construction formwork and interior and exterior furnishings.


Cut-off saw technical data

Blade diameter
600 mm

Blade rotation speed
2600 rpm

Blade motor power
kW 7,5 (HP 10)
Automatic working table rotation
-70°  0°  +70°

Working table height
1000 mm

Working table inclination

Minimum cutting cross section
30 (W) x 10 (H) mm

Max cutting capacity at 0° (straight cutting)
410 mm (W) at 40 mm (H) - 215 mm (W) at 200 mm (H)

Max cutting capacity at 45° (angled cutting)
285 mm (W) at 40 mm (H) - 150 mm (W) at 200 mm (H)

Max cutting capacity at 70° (angled cutting)
80 mm (W) at 40 mm (H) - 40 mm (W) at 200 mm (H)

Max operating pressure
6 bar

Extraction outlets
3 x Ø100 mm - 1 x Ø120 mm

Net weight
1200 kg



Notching unit technical data

Motor power
kW 4 (HP 5,5) - kW 5,5 / kW 7,5 option

Max cutter diam.
280 mm (bore Ø40 mm)

Notching stroke
400 mm
Max cutter width
100 mm

Manual cutter depth positioning
da 0 a 75 mm (electronic depth positioning option)

Net weight
750 kg


Push-feed technical data

Loading capacity
3000 - 4000 - 5000 - 6000 mm

Max speed
90 mt / min

Max positioning speed
90 mt / min
Max return speed
90 mt / min

Positioning accuracy
+/- 0,4 mm

Max board weight
80 kg

Cutting execution cycle
4 sec

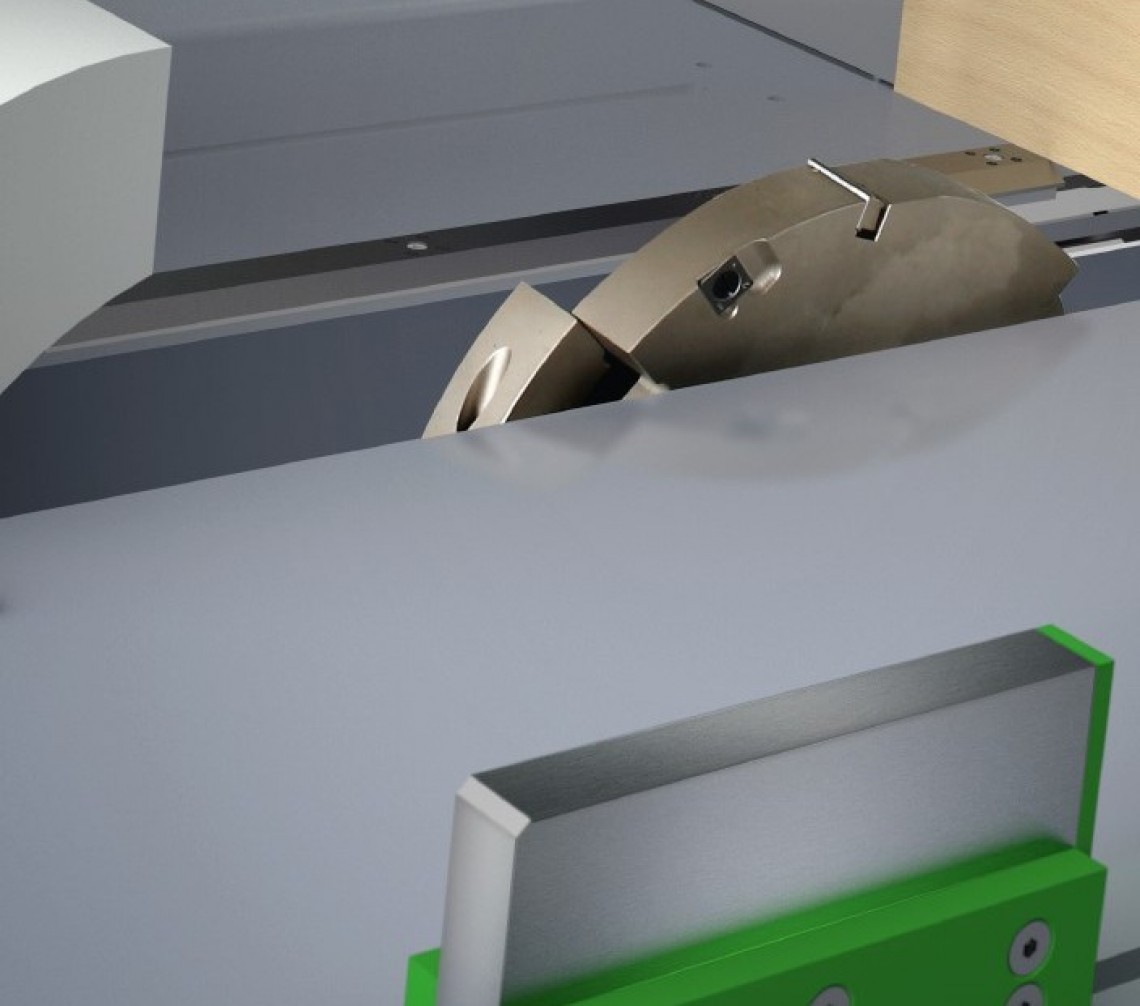

NOTCHING UNIT
