PS 50 F
products / PENDULUM SAWS
Product Description
PENDULUM SAWS
MACHINES FOR THE PACKAGING INDUSTRY
PS50F fixed head, designed to offer versatility and functionality in cutting all different types
of packaging material.

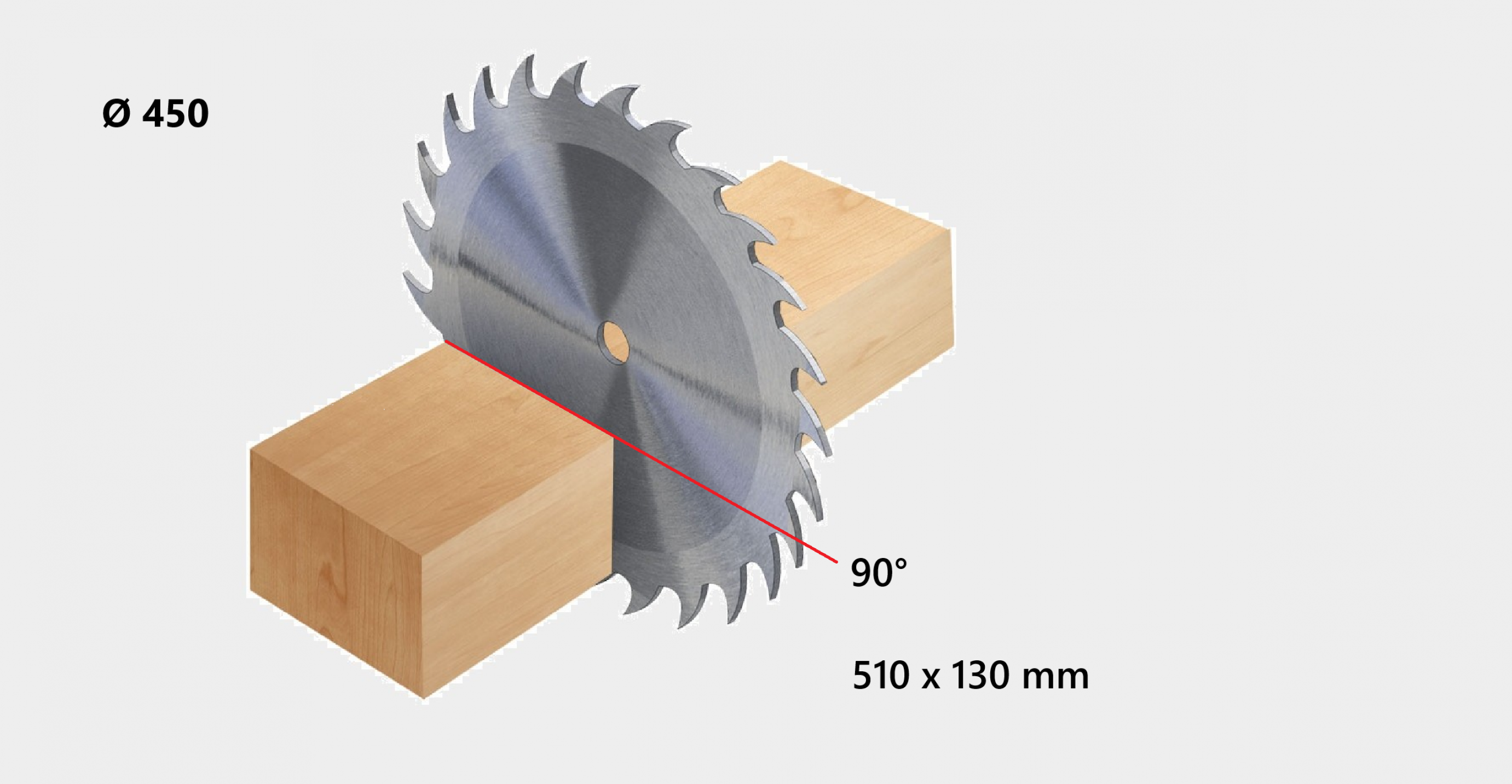

Thanks to a blade diameter 500 mm and a motor power of 5.5 kW allows you to cut
up to 145 mm thick and 510 mm wide.
of packaging material.
Thanks to a blade diameter 500 mm and a motor power of 5.5 kW allows you to cut
up to 145 mm thick and 510 mm wide.
|
Technical data
|
|
|
Blade diameter
500 mm
|
Blade rotation speed
2800 rpm
|
|
Blade motor power
kW 5 (HP 7,5) triphase
|
Max cutting capacity
510 mm (W) and 145 mm (H)
|
|
Blade feed system
manual
|
Extraction capacity
1250 m3/h
|
|
Extraction outlets
1 x Ø150 mm
|
Net weight
260 kg
|
