SL2

products / CLAMPING MACHINES FOR GLUING

Product Description

Electrohydraulic clamping machine for the production of structural plywood beams (max. width 200 mm.).

Small footprint with front loading, wide range of sizes, from 3000 mm. to 20000 mm. Fixed vertical beams, adjustable-height timber rests.

  • High-performance hydraulic cylinders (max. thrust 7200 kg.), sliding hydraulic front pressure bars.
  • Hydraulic cylinders with independent open/close valves.

Lengthwise-sliding hanging control panel.

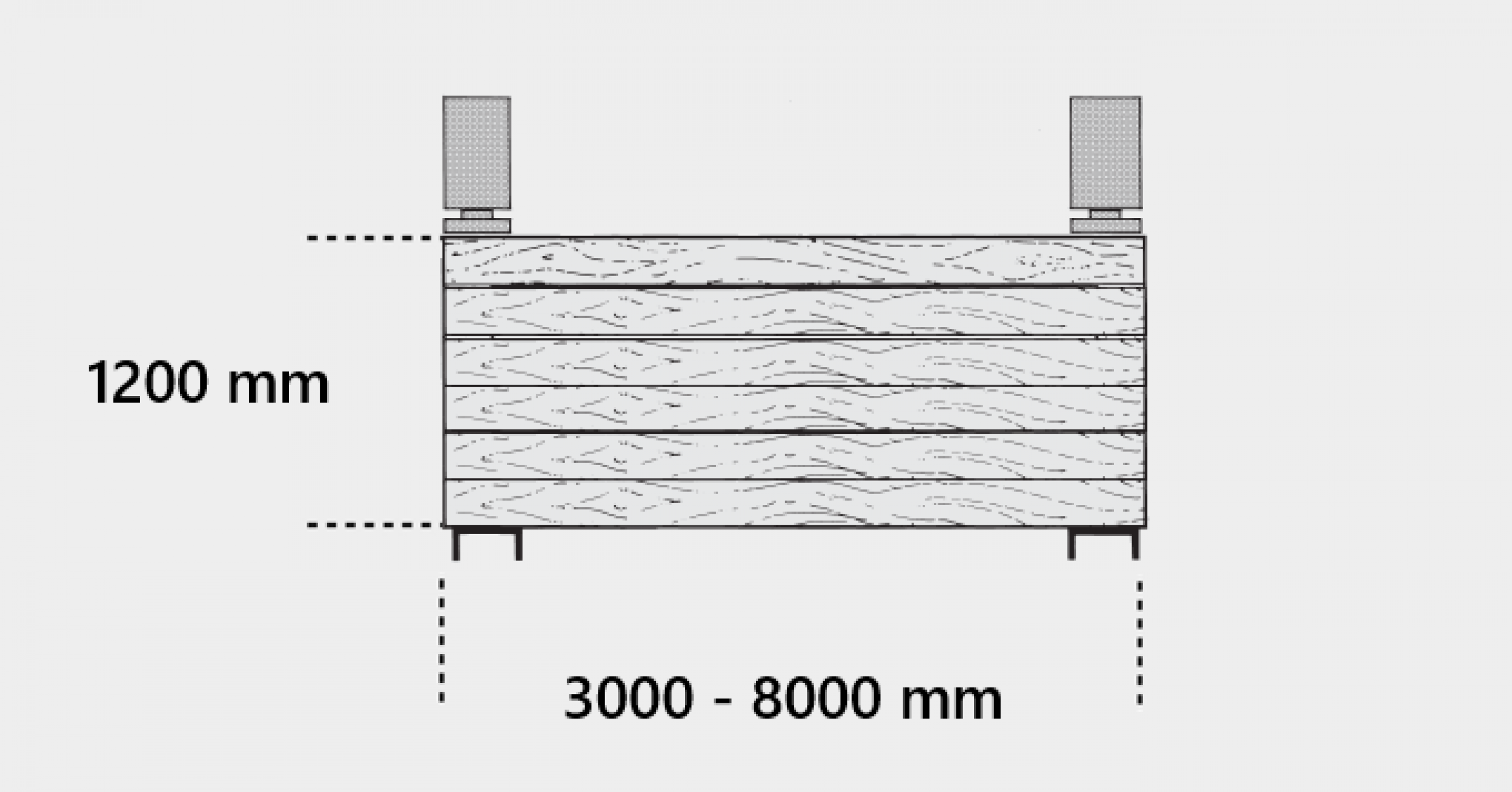

STANDARD EQUIPMENT: Single-sided with 2 fixed vertical beams for each metre of working space, 1 hydraulic front pressure bar every metre, Actual working lengths from 3000 to 8000 mm., Actual working height mm.1200

OPTIONAL EQUIPMENT: Additional hydraulic front pressure bars, Modification to permit gluing of beams up to 250 mm. in width and over 8000 in length.
