products / CLAMPING MACHINES FOR DOORS AND WINDOWS
Product Description
The machine frame consists of a wheel-mounted steel structure, 2 wheels of which are steerable.
The clamping machine is equipped with manual hydraulic cylinders (max. thrust 1500 kg.) with rapid pressure on-off control. The hydraulic cylinders are also fitted with an adjustable by-pass valve to prevent the rated pressure being exceeded.

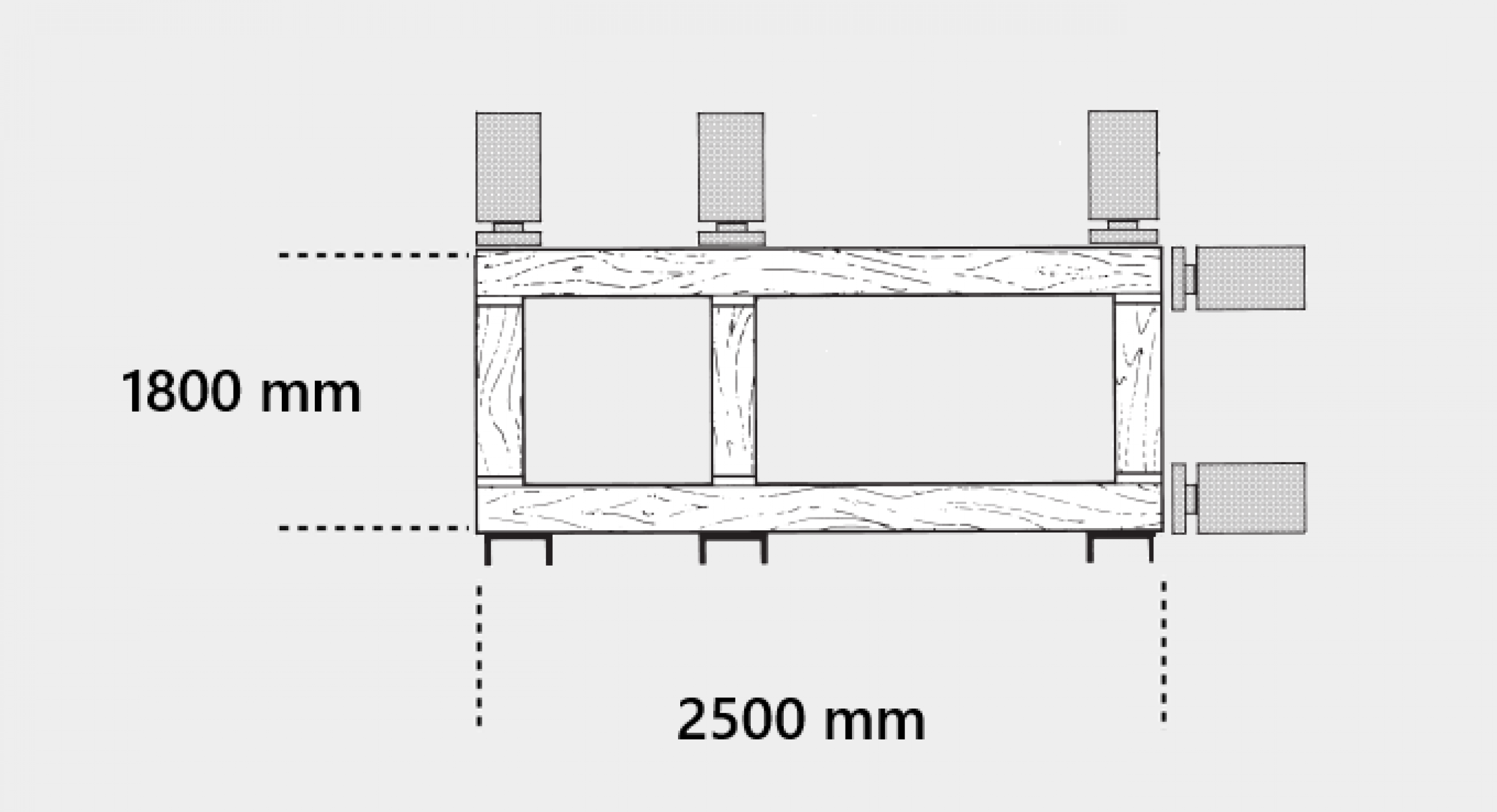

STANDARD EQUIPMENT: Single-sided with 3 sliding vertical beams and 2 horizontal hydraulic cylinders, Actual working dimensions 2500x1800 mm.
OPTIONAL EQUIPMENT: Additional vertical beams with pneumatic cylinder, Additional front pressure bars, Working lengths greater than 2500 mm, Working heights greater than 1800 mm.
