CT 800
products / CUTTING CENTRES FOR BEAMS
play video
Product Description
AUTOMATIC BEAM PROCESSING CENTRE
COMPOUND CUTTING FOR LARGE SECTIONS
CT800 is the cutting centre for large-section beams, making it the optimal solution in carpentry and timber frame construction.
Thanks to an electronically controlled 5-axis technology, it satisfies all straight, tilting and compound cutting requirements.
It guarantees maximum processing speed and finished product quality, reducing labour and maximising production.
CT800 can process beams of any length with cross-sections from 120x45 mm up to 290x280 mm.
Beam movement system with motorised rubberised wheels and pneumatically tilting upper pressers.
The software architecture relies on a CAD-CAM 'Stromab Easy-Wood' to import machining lists
generated by external design software such as SEMA, DIETRICH AND CAD-WORK.
Easy and intuitive graphical interface.
COMPOUND CUTTING FOR LARGE SECTIONS
CT800 is the cutting centre for large-section beams, making it the optimal solution in carpentry and timber frame construction.
Thanks to an electronically controlled 5-axis technology, it satisfies all straight, tilting and compound cutting requirements.
It guarantees maximum processing speed and finished product quality, reducing labour and maximising production.
CT800 can process beams of any length with cross-sections from 120x45 mm up to 290x280 mm.
Beam movement system with motorised rubberised wheels and pneumatically tilting upper pressers.
The software architecture relies on a CAD-CAM 'Stromab Easy-Wood' to import machining lists
generated by external design software such as SEMA, DIETRICH AND CAD-WORK.
Easy and intuitive graphical interface.
|
Technical data
|
|
|
Blade diameter
800 mm
|
Blade rotation speed
1450 rpm
|
|
Blade motor power
kW 15 (HP 20) con Inverter
|
Minimum cutting section
120 (W) x 45 (H) mm
|
|

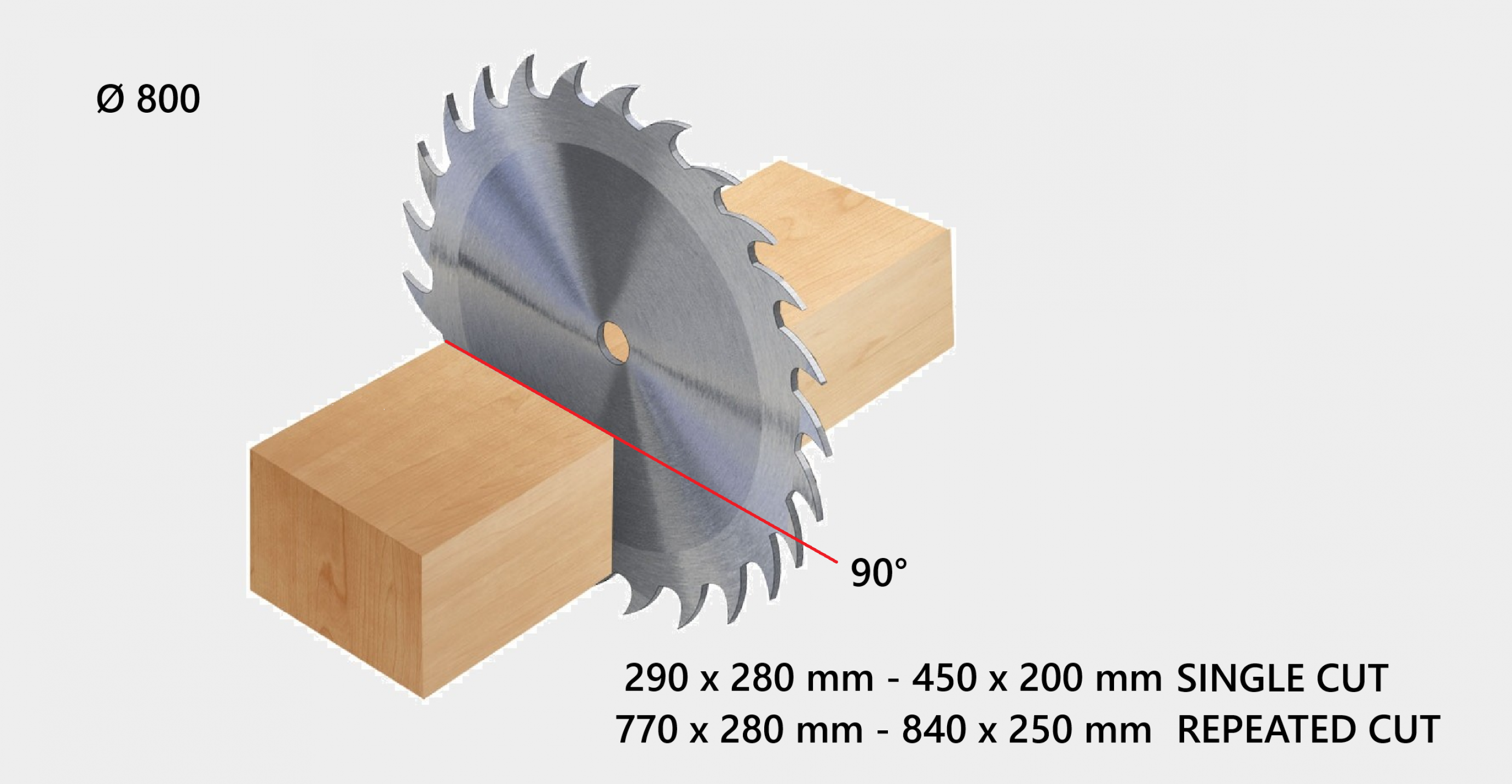

Max cutting section at 90° (single cut)
290 (W) x 280 (H) mm - 450 (W) x 200 (H) mm
|
Max cutting section at 90° (repeated cut)
770 (W) x 280 (H) mm - 840 (W) x 250 (H) mm
|
|
Beam feed speed on rollers
0 - 17 mt/min
|
Worktable rotation
0° - 340°
|
|
Blade inclination
90° +45°
|
Max operating pressure
6-8 bar |
|
Extraction outlet
2 x Ø150 mm
|
Net weight
2960 kg |
CUTTING UNIT
5 electronically controlled axis
BEAM DISPLACEMENT
Motorised tyred wheels and pneumatic tilting upper pressors
